Concrete plant equipment concrete mixture plant on sale

FOB Reference Price:Get Latest Price
US $50,000-98,000 / Sets | 1 Set/Sets Concrete plant equipment concrete mixture plant on sale (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Type:
Electric
Place of Origin:
Henan, China (Mainland)
Brand Name:
AIMIX
Model Number:
HZS75
Power(W):
65kw
Dimension(L*W*H):
35.6m*18.3m*11.8m
Weight:
40T
Certification:
CE ISO
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Concrete plant equipment concrete mixture plant on sale
Productivity:
75 m3/h
Discharging Height:
4.1m
Main mixer:
JS1500
Batching machine:
PLD 2400
Max. Aggregate:
80mm
Aggregate Weighing:
4500Kg
Cement Weighing:
1500Kg
Additive Weighing:
50Kg
Color:
Customer Required
Supply Ability
Supply Ability:
100 Set/Sets per Quarter Concrete plant equipment concrete mixture plant on sale
Packaging & Delivery
Packaging Details
standard packaging or as required
Port
qingdao
Lead Time :
After received prepayment,during 15 working day

Concrete plant equipment concrete mixture plant on sale

Product Description

Concrete plant equipment concrete mixture plant is composed of material supply batching system mixing electrial control and steel structure. It is ideal concrete equipment for building project, building ground and precast product factory.



With the development of municipal construction, it is of great advantage to use centralized mixing and mixing station.

 Concrete plant equipment concrete mixture plant on sale

Technology parameter



Model

HZS75

Rated Productivity

75m3/h

Main Mixer

JS1500

Batching Unit

PLD2400

Max. Aggregate Diameter

80mm

Discharging Height

4.1m

Aggregate Weighing Precision

4500Kg ±2%

Cement Weighing Precision

1500Kg ±1%

Water Weighing Precision

600Kg ±1%

Additive Weighing Precision

50Kg ±1%

General Power

65Kw

Total Weight

40T

Outline dimension (L*W*H)

35.6m*18.3m*11.8m

Control Mode

Full/Semi-automatic batching, manual operation

Main parts

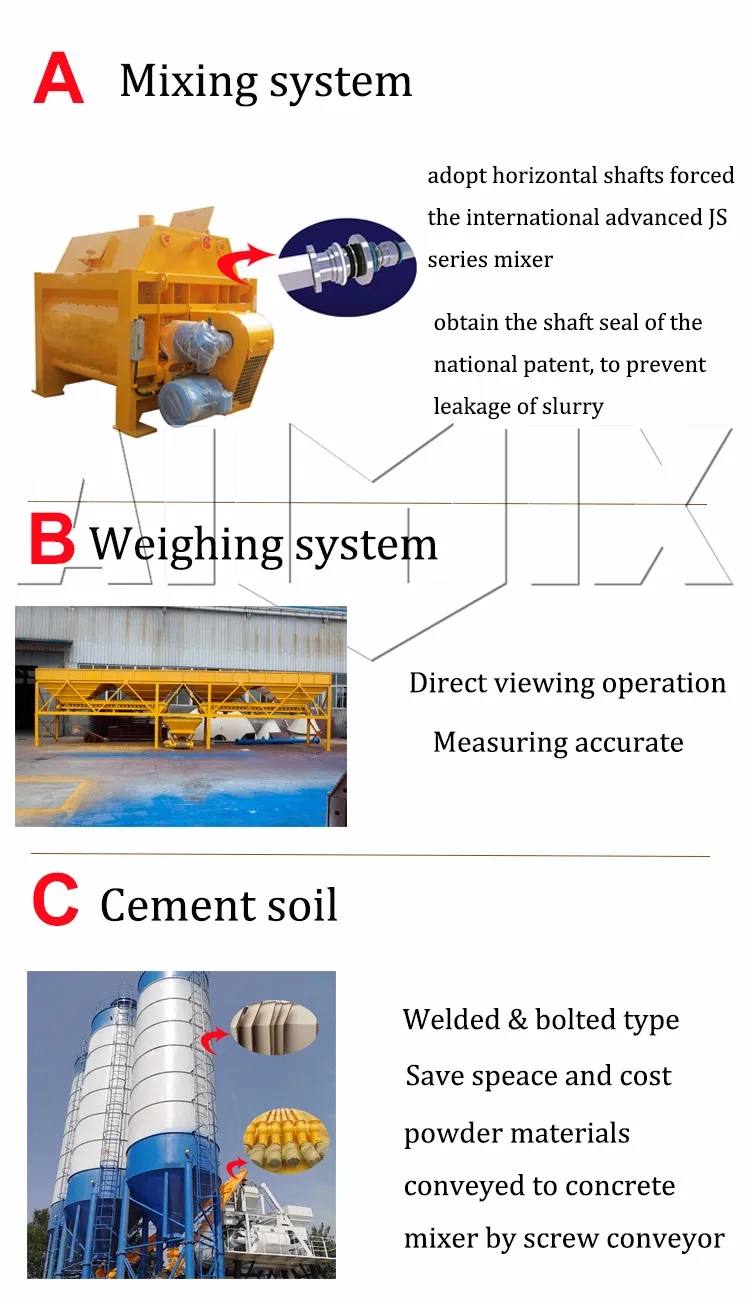

 ♦This concrete mixing plant adopts JS1500 concrete mixer, it is a double horizontal shaft concrete mixer, so it can mix concrete efficiency and enough in short time.

 The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.

Sand & gravel batching machine use PLD2400, with has highly accuracy measuring.

There also has maintenance walkway, so that enginer can examine this plant easily.

Cement is stored in cement silo, and feeding by screw conveyor.

Water supply system is composed by water tank, water pump and water weigher.

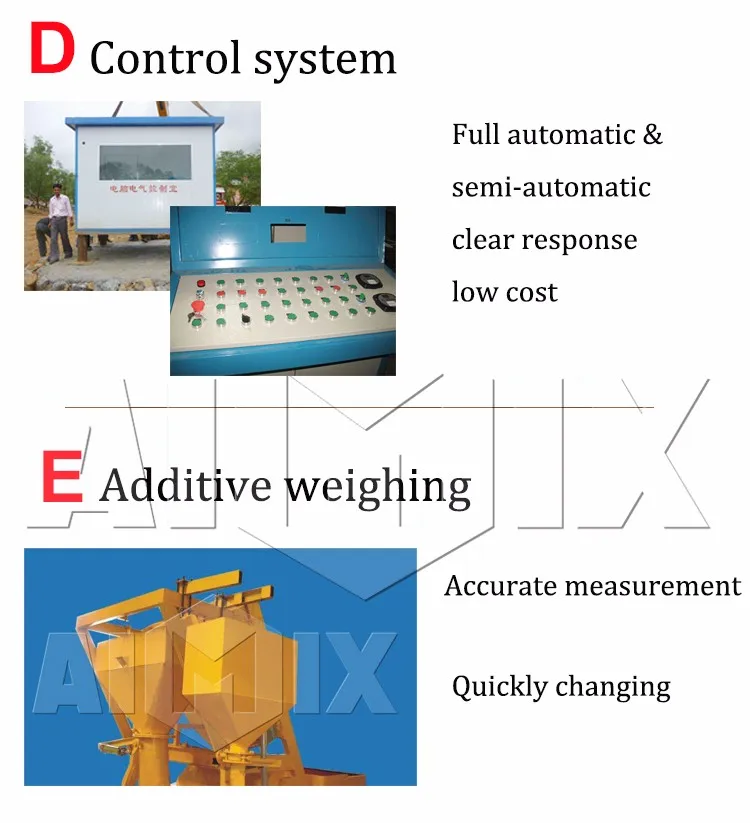

The whole mixing, batching system is operated by electrical control room or control plate, fully automatical.

Concrete plant equipment concrete mixture plant on saleConcrete plant equipment concrete mixture plant on sale

Packaging & Shipping

 Concrete plant equipment concrete mixture plant on sale

Company Information

Location:

Our company was established in 1982. It is a c  hot sale concrete mixer portable omprehensive group corporation combined with design, production and sale sectors.
History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.
Our main products :

Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine, Dry-mix Mortar Production Line, Asphalt Mixing Plant, Tower Crane, Wheel Loader, Cement Silo, Screw Conveyor, and other construction machinery.
Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Professional machine HZS75 ready mix concrete batching plant layout costConcrete plant equipment concrete mixture plant on sale



Our Services

 Professional machine HZS75 ready mix concrete batching plant layout cost

More product:

Product Name

Type



Concrete Mixing Plant

Hopper Type Concrete Mixing Plant

HZS25/35/50//75/100

2 HZS25/35/50//75/100



Conveyor Belt Type Concrete Mixing Plant

HZS60/90/120/150/180/200/240

2 HZS60/90/120/150/180/200/240



Mobile Concrete Mixing Plant

YHZS30/50/60/75/90
