Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: LB1000
  • Voltage: 220V/380V-50Hz
  • Power(W): 230kw
  • Dimension(L*W*H): 37m*34m*14m
  • Weight: 90t
  • Certification: ISO.CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Top quality 80t/h asphalt concrete mixer with price
  • Capacity: 80t/h
  • Dry cylinder: 1.5m*6m
  • Vibrating screen: 4 layers
  • Hot aggregate container: 26t
  • Mixing kettle capacity: 1000kg
  • Mixing cycle: 45s
  • Mineral powder tank volume: 26+36t
  • Asphalt tank volume: 50000L
  • Color: Client's Customized

Packaging & Delivery

Packaging Details Standard packing or as request
Delivery Time within 10 days after advanceed payment

Top quality 80t/h asphalt concrete mixer with price

Product Description

Top quality 80t/h asphalt concrete mixer will be the initial grade with a good cold aggregate added to the drying cylinder, after drying heating, and then heat aggregate to enhance, and then screening. Stored in a hot pot storage, and added to the mixing pan with the metered fillers and binders. Evenly mixed into asphalt mixture.

Application:

Top quality 80t/h asphalt concrete mixer can fully meet high grade highway construction, municipal roads construction, airports construction and other needs , it is the ideal equipment for construction and maintenance of high-ways.





Technology parameter



Type

LB500

LB750

LB1000

Rated production

30-40t/h

50-60t/h

60-80t/h

Cold aggregate container

4containers
*6m3

4containers
*6m3

4containers
*9m3

Dry cylinder

1.1m*4.2m

1.3m*5m

1.5m*6m

Bag dust-remover

CNM156

CNM240

CNM357

Emission standard

50mg/nm3

50mg/nm3

50mg/nm3

Vibrating screen

4 layers

4 layers

4 layers

Hot aggregate container

12t

12t

26t

Mixing kettle capacity

500kg

750kg

1000kg

Mixing cycle

45s

45s

45s

Mineral powder tank volume

30t

30t

26+36t

Asphalt tank volume

30000L

30000L

50000L

Heat conduction oil stove

200,000 kcol/h

200,000 kcol/h

300,000 kcol/h

End-product container volume

50t

50t

90t



Main parts

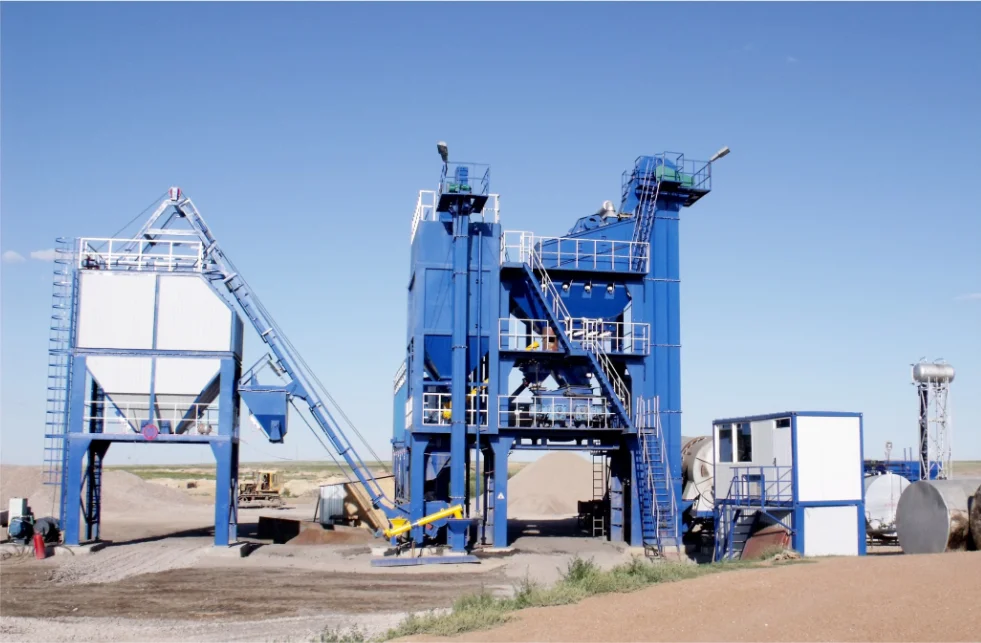

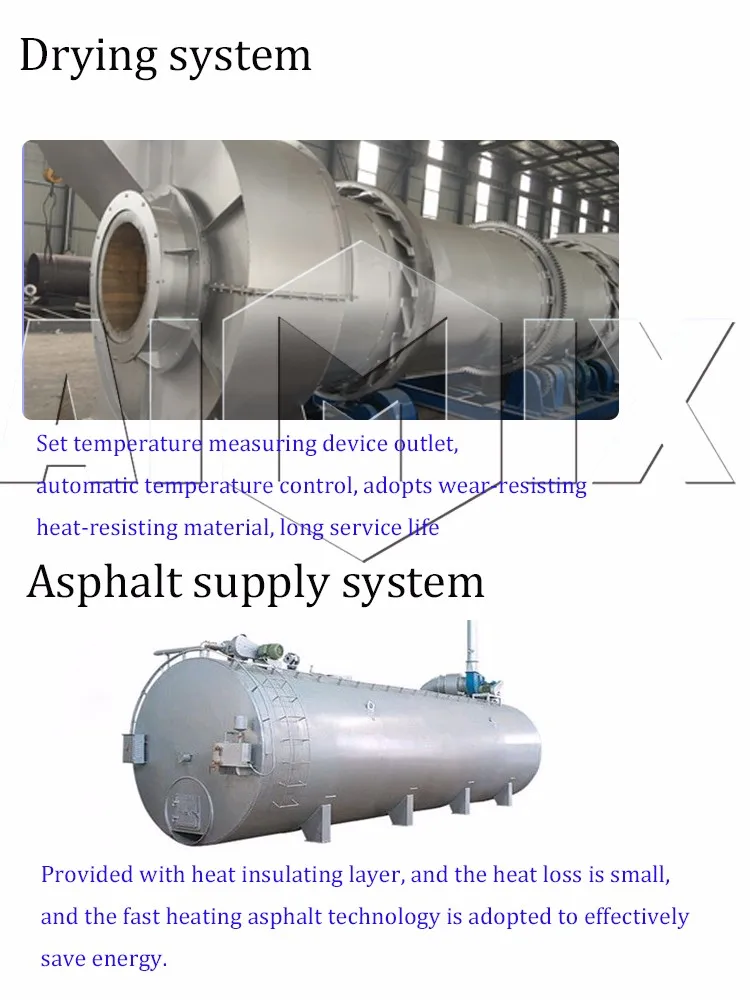

80t/h stationary asphalt hot mix plant is mainly composed of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage warehouse, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished silo and control system Part of the composition.







Our Services



Successful Cases

 We has exported asphalt mixing plant to Pakistan in 2016. and the plant put into production successfully.





Company Information

History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Our Markets:

Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.

FAQ

Q1:Can you sent me some wearing parts?

A:Yes, For some common wearing parts,we will send you freely.

Q2: What is the delivery time?

A: 3-15days after receiving advance payment.

Q3:What paymet terms you use?

A:Usually the world most common used T/T,L/C ,etc

Q4: Can we put our logo on the machine?

A. Yes, it is available.  LOGO and color are usually as per customer's requirement.



Top quality 80t/h asphalt concrete mixer with price!!!

Welcome to contact us!

 We are waiting for your best requirement!
