Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: HBT40
  • Power(W): 45kw
  • Weight: 2880kg
  • Dimension(L*W*H): 4650*1500*1650mm
  • Certification: ISO CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Portable small 40m3/h electric concrete pump for sale
  • Productivity: 40m3/h
  • Max. ConveyingPumping Pressure: 11MPa
  • Max. Conveying Distance: 100m
  • Max. Horizontal Conveying Distance: 450m
  • Max. Aggregate size: 30mm
  • Slump: 23cm
  • Feeding Height: 1350mm
  • Hopper Capacity: 0.35m3/h
  • Color: Customers' Requirement

Packaging & Delivery

Packaging Details standard packing or as request
Delivery Time within 15 days after advanced payment

Portable small 40m3/h electric concrete pump for sale

Product Description

Processing:

Portable small 40m3/h electric concrete pump driven by the diesel engine to produce hydraulic pressure, the use of hydraulic pressure to drive the cylinder to produce reciprocating motion, driven by the piston to complete the suction and pressure of concrete action.

Application:

Portable small 40m3/h electric concrete pump is applicable on fine stone concrete conveying, floor heating construction, tunnel and underground construction, mortar conveying, used as spray pump when installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying, applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power,mining and national defense.



Technical Parameters



Items

Unit

XHBT-40S/1011

Max. Theoretical Conveying Capacity

m3/h

40

Max. Theoretical Pumping Pressure

MPa

11/6.8

Max. Theoretical Vertical Conveying Distance

m

160

Max. Theoretical Horizontal Conveying Distance

m

600

Max. Aggregate Diameter

mm

30

Slump

cm

12-23

Conveying Pipe Inner Diameter

mm

100A/80A

Conveying Cylinder Quantity

pcs

2

Concrete Cylinder Bore * Stroke

mm

Φ140×1000

Hydraulic Oil Tank Volume

L

240

Feeding Height

mm

1100

Hopper Capacity

m3

0.35

Main Motor Power

kw

45

Overall Dimension (L*W*H)

mm

4650*1500*1650

Overall Weight

kg

2880



Advantages

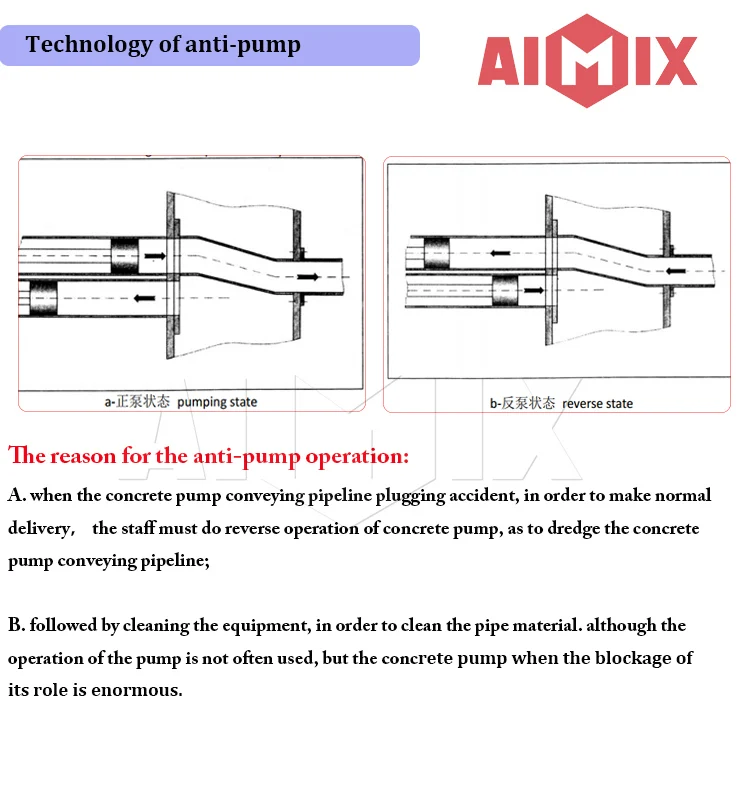

1.Considering the weaknesses of large impact when the starting system reverses, we adopts the main valve pilot pressure control to avoid the impact of reverse, the main pumping circuit reversing is more reliable and stable.

2.Pumping hydraulic system is equipped with safety overflow protection device, and at the same time, the main pump has such a function that when the system is overpressed the oil pump pressure can automatically cut off the closure device, so that the main pump can receive multi-level protection.

3. The product adopts double pump double open circuit hydraulic system, the main pumping oil circuit and S valve switching circuit are independent with each other. This make the system simple enough, components has a long service life, high reliability and easier to identify and eliminate the failure.

Main features

HBT series Concrete pump are consist of electric system, mixing Distribution Valve System,Lubrication System, Cooling System etc.



Packaging & Shipping



Our Services



Company Information



More related products:

We also supply the diesel concrete pump,
we can provide the customized service for you!
Portable small 40m3/h electric concrete pump for sale!!
