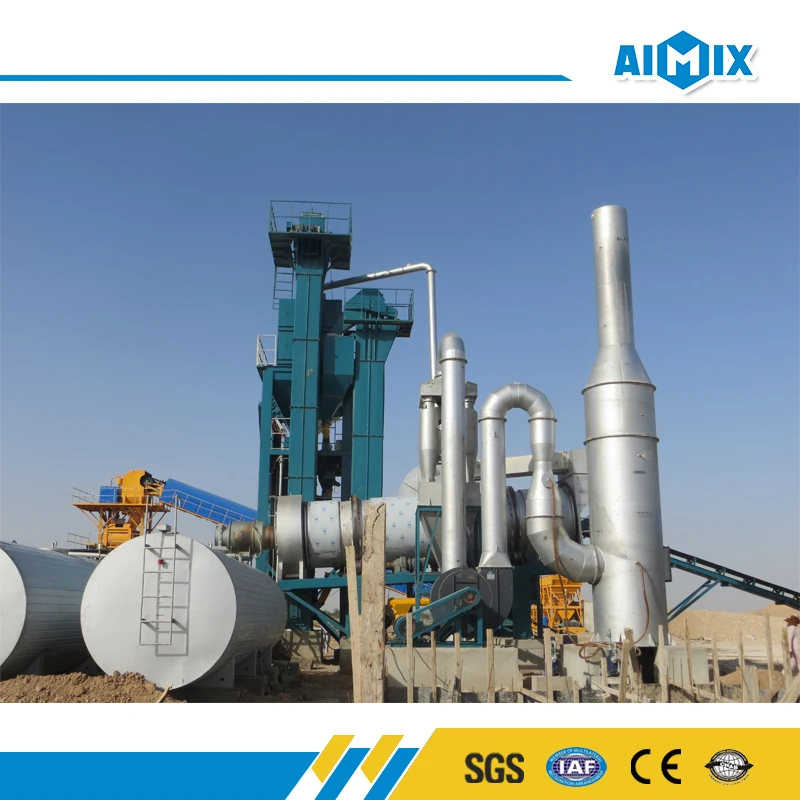

80t/h drum mixer asphalt concrete mixing plant

FOB Reference Price:Get Latest Price
US $10,000-25,000 / Sets | 1 Set/Sets 80t/h asphalt drum mixer asphalt concrete mixing plant in China (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
AIMIX
Model Number:
LB1000
Voltage:
220V/380V-50Hz
Power(W):
230kw
Dimension(L*W*H):
37m*34m*14m
Weight:
90t
Certification:
ISO.CE
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
80t/h asphalt drum mixer asphalt concrete mixing plant in China
Capacity:
80t/h
Dry cylinder:
1.5m*6m
Vibrating screen:
4 layers
Hot aggregate container:
26t
Mixing kettle capacity:
1000kg
Mixing cycle:
45s
Mineral powder tank volume:
26+36t
Asphalt tank volume:
50000L
Color:
Client's Customized
Supply Ability
Supply Ability:
100 Set/Sets per Quarter 80t/h asphalt drum mixer asphalt concrete mixing plant in China
Packaging & Delivery
Packaging Details
Standard packing or as request
Port
China main port
Lead Time :
within 10 days after advanceed payment
Video Description

80t/h asphalt drum mixer asphalt concrete mixing plant in China

Product Description

80t/h asphalt drum mixer asphalt concrete mixing plant will be the initial grade with a good cold aggregate added to the drying cylinder, after drying heating, and then heat aggregate to enhance, and then screening. Stored in a hot pot storage, and added to the mixing pan with the metered fillers and binders. Evenly mixed into asphalt mixture.

Application:

80t/h asphalt drum mixer asphalt concrete mixing plant can fully meet high grade highway construction, municipal roads construction, airports construction and other needs , it is the ideal equipment for construction and maintenance of high-ways.



80t/h asphalt drum mixer asphalt concrete mixing plant in China



Technology parameter



Type

LB500

LB750

LB1000

Rated production

30-40t/h

50-60t/h

60-80t/h

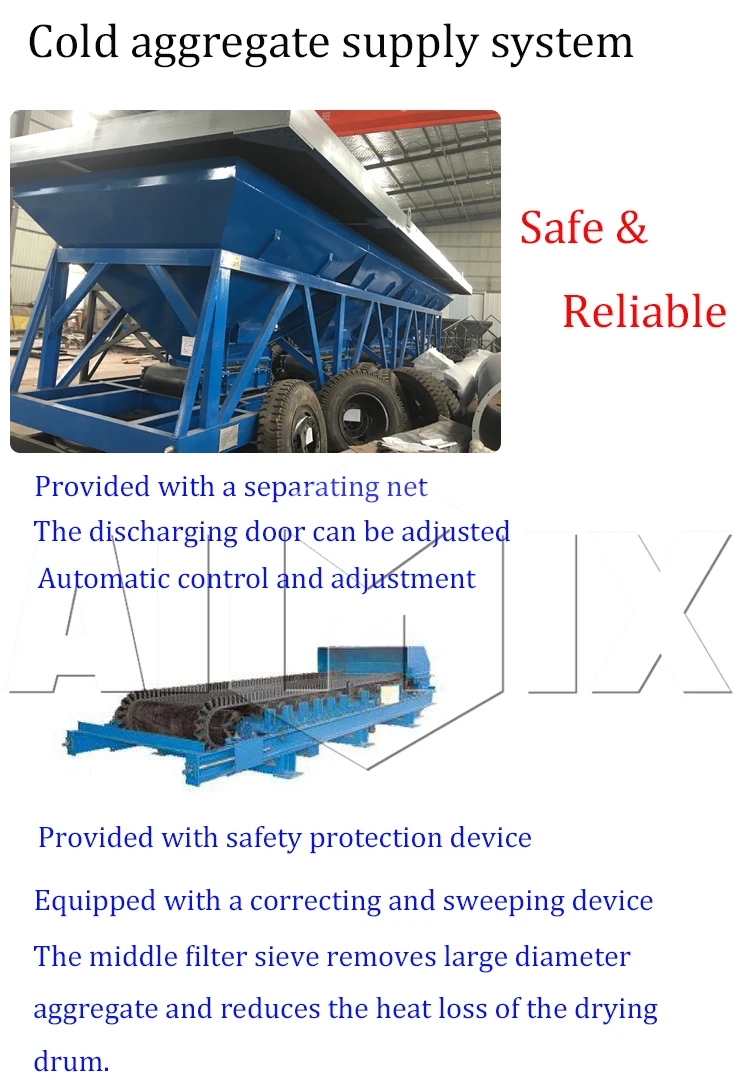

Cold aggregate container

4containers
*6m3

4containers
*6m3

4containers
*9m3

Dry cylinder

1.1m*4.2m

1.3m*5m

1.5m*6m

Bag dust-remover

CNM156

CNM240

CNM357

Emission standard

50mg/nm3

50mg/nm3

50mg/nm3

Vibrating screen

4 layers

4 layers

4 layers

Hot aggregate container

12t

12t

26t

Mixing kettle capacity

500kg

750kg

1000kg

Mixing cycle

45s

45s

45s

Mineral powder tank volume

30t

30t

26+36t

Asphalt tank volume

30000L

30000L

50000L

Heat conduction oil stove

200,000 kcol/h

200,000 kcol/h

300,000 kcol/h

End-product container volume

50t

50t

90t



Main parts

Asphalt mixing plant is mainly composed of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage warehouse, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished silo and control system Part of the composition.



3.jpg80t/h asphalt drum mixer asphalt concrete mixing plant in China





Main features

     1. Feeding belt is designed with baffles, which makes material feeding system steady.

2. Optimized flights structure of drying drum makes the dryings system more effective and stable

3. Hot elevator adopts the double Gall’s chain for hoisting, which not only prolongs the service lift of the hoisting machine but also improves the running stability

4. Linear-mode screen driven by imported vibrator improves the screening efficiency  and reduces the failure rate of plant

5. Large capacity hot aggregate bin make operation more convenient

Successful Cases

 We has exported asphalt mixing plant to Pakistan in 2016. and the plant put into production successfully.



80t/h asphalt drum mixer asphalt concrete mixing plant in China

80t/h asphalt drum mixer asphalt concrete mixing plant in China



Company Information

History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Our Markets:

Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.

 80t/h asphalt drum mixer asphalt concrete mixing plant in China

Top quality 80t/h harga asphalt batch mix plant for saleTop quality 80t/h harga asphalt batch mix plant for sale

FAQ

Q1:What equipment and service you can provide?

A: We can provide you solution of Asphalt Mixing Plant from working site planning to asphalts machines, transportation, installation and training, formula of asphalts, after sales services, life time technical support etc.



Q2. What is the guarantee period?

A: 12 months, with in this period we provide you technical services for free.



Q3. What is the area required for asphalt mixing plant?

A: According to different capacity, the capacity required 20-320T/H.



Q4. Can you install the asphalt mixing plant in my country?

A: Sure, we will send engineers to your country for guiding installation and training your workers to operate the machine.



 If you want to know more about our 40 asphalt mixing plant, please send inquiry or contact us directly.





80t/h asphalt drum mixer asphalt concrete mixing plant in China!!!
