Heavy duty electric mixer concrete stainless steel /imer concrete mixer parts

FOB Reference Price:Get Latest Price
US $4,500-5,500 / Set | 1 Set/Sets Heavy duty electric mixer concrete stainless steel /imer concret (Min. Order)
Supply Ability:
100 Set/Sets per Month Heavy duty electric mixer concrete stainless steel /imer concret
Port:
China main port
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
AIMIX
Model Number:
JS750
Motor Power:
7.5kw
Mixing Power:
30 Kw
Charging Capacity:
1200L
Reclaiming capacity:
750L
Speed of Mixing Drum:
30r/min
Water Supply Mode:
Water Pump Motor
Working Cycle Period:
60s
Discharge Way:
Hydraulic Discharging
Outline Dimension:
5100*2250*6700mm
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
electric mixer concrete stainless steel /imer concrete mixer parts
Aggregate Size:
80/60mm
Model:
JS750
Water supply accuracy:
±2%
capacity:
40-50m3/h
power type:
Electric Motor Cement Mixer
Color:
Customer's Requirement
Application:
Building Site
Weight:
6700kg
LOGO:
AS Your Requriement
Packaging & Delivery
Packaging Details
Standard packing or as request
Delivery Time
within 10 days after advanceed payment

Heavy duty electric mixer concrete stainless steel /imer concrete mixer parts



Product Description

Heavy duty electric mixer concrete stainless steel /imer concrete mixer parts is the New designed small mixers JS750 in China, the rated discharged capacity is 750 liters per time.

Heavy duty electric mixer concrete is applicable to all types of middle size and small precast plants and highways, bridges, water conservancy, port, wharf and other industrial and civil engineering construction sector to mix dry hard concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete, and a variety of mortar. Except used independently, it can also used together with PL1200 to form the simple concrete mixing plant, the main mixer of the HZS35 concrete mixing plant.





Technology parameter



Item

Unit

Parameter

Charging Capacity

L

1200L

Discharging Capacity

L

800

Min. Productivity

m3 /h

35

Max Size of Aggregate (Pebble/Macadam)

mm

80/60

Overall  Dimension ( L x W x H)

mm

5100×2250×6700

Overall Weight

kg

6100

Discharge Height

mm

1500/2700/3800

Mixing Blade

Quantity



2x7



Rev

r/min

30.5

Mixing Electromotor

Type



Y200L-4



Power

kw

30

Windlass Electromotor

Type



YEZ132M-4-B5



Power

kw

7.5

Water Pump Electromotor

Type



65DWB-35-5



Power

kw

1.1

EXW Price(Double shaft,support leg 2 m, hydraulic  discharge)



Product Display

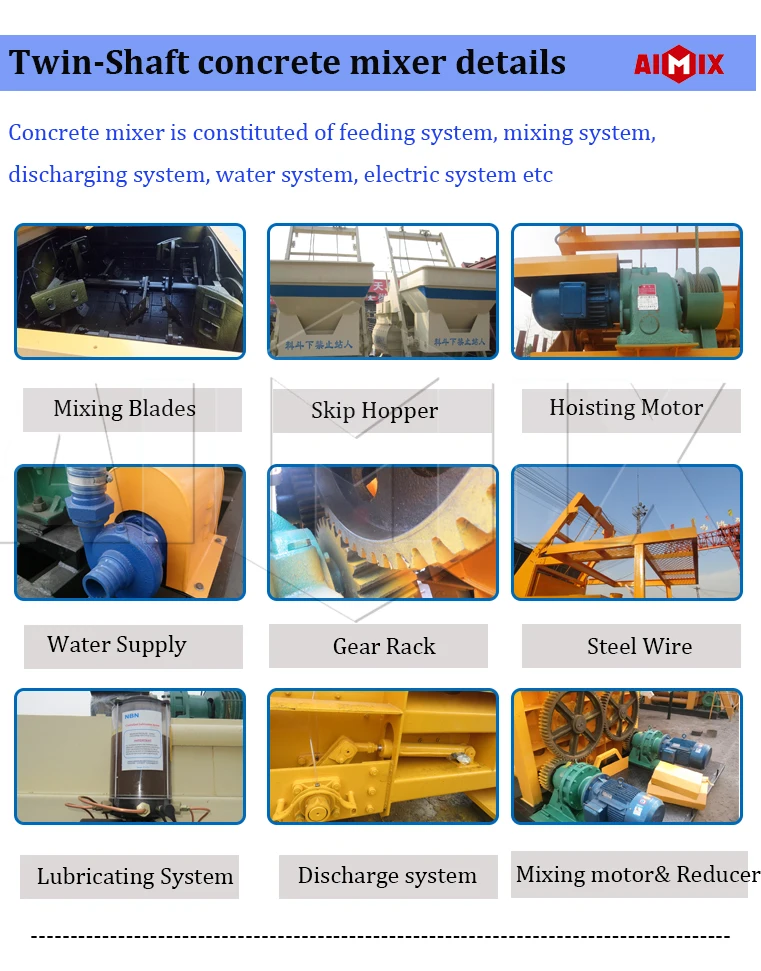

 JS750 concrete mixer is constituted of feeding system, mixing system, discharging system, water system, electric system etc.

1.Mixing system: The mixing system is constituted of the electric motor, belt wheel; reducer, open type gear, mixing drum mixing device.



2. Feeding system: The feeding system is constituted of hoisting frame, feeding frame, hopper, feeding mouth etc.



3. Water System: The water system is constituted of water pump , throttle valve,cleaning device and sprinklers.



4.Discharging System:The discharging system is constituted of discharging gate,cylinder or hydraulic cylinder.there are three parts:Hydraulic control, pneumatic control, manual control.



5.Electrical System:There are air-switch,fuse,thermal relay with the function of circuit protection and overload protection.

Packaging & Shipping

 Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Malaysia, Philippine, Indonesia, Japan, India, Iran, Saudi Arabia, Ukraine, Australia, America, Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries and areas.

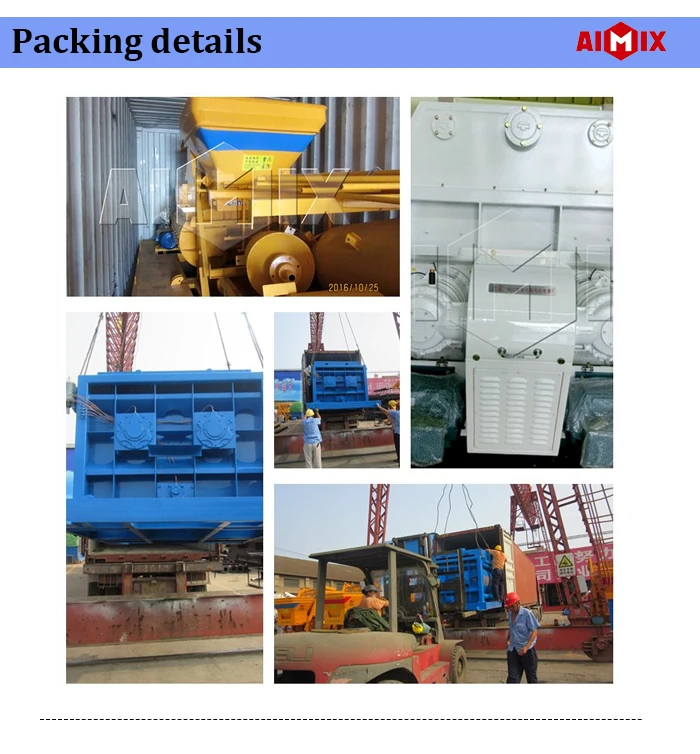

These packing photos are JS750 concrete mixer exported to Uzbekistan in 2015.



Company Information

History:

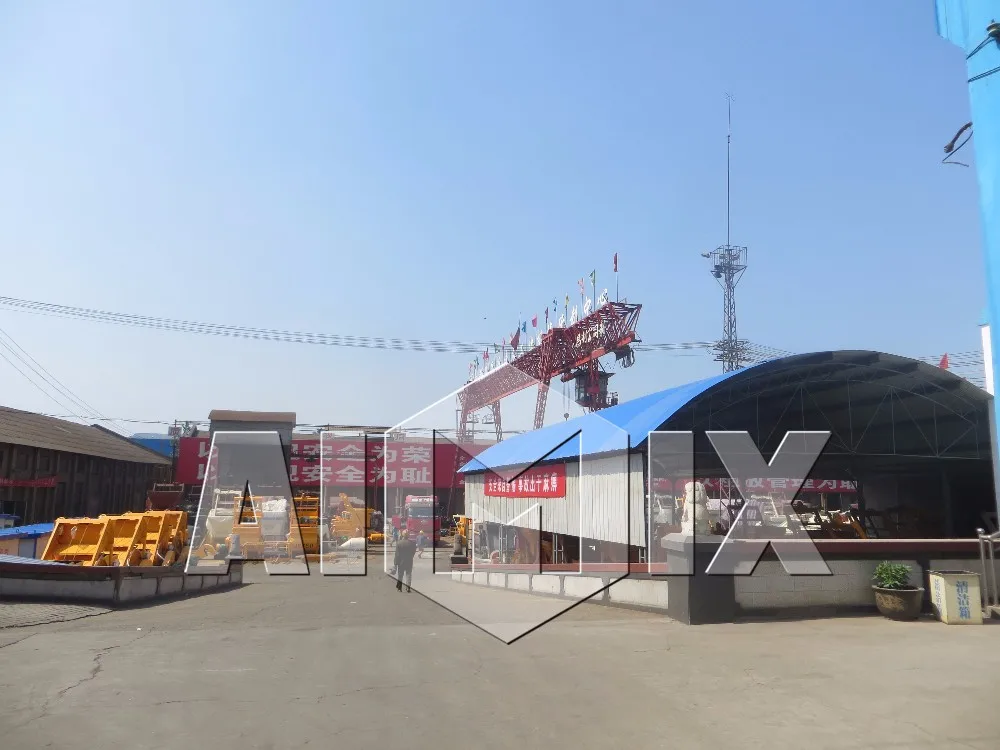

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Our Markets:

Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.
