Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Aimix
  • Model Number: CL-30
  • Motor Power: 2.2kw
  • Mixing Power: 93kw
  • Charging Capacity: 1.5m3/min
  • Reclaiming capacity: 1m3/min
  • Speed of Mixing Drum: 20r/min
  • Water Supply Mode: Hydraulic Water Driven Pump
  • Working Cycle Period: 60s
  • Discharge Way: Automatic
  • Outline Dimension: 5300*2450*3360mm
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: High efficiency 3m3 automatic self loading concrete mixer truck
  • Curb weight: 7000kg
  • Mixing capacity: 3m3/h
  • Hydraulic motor: China top brand
  • Speed reducer: China top brand
  • Water tank capacity: 300L
  • Drive: 4 wheels
  • Steering: Front wheels
  • Working speed: 0-9km/h
  • Color: Customer's Requirement

Packaging & Delivery

Packaging Details standard packing or as request
Delivery Time within 15 days after advanced payment

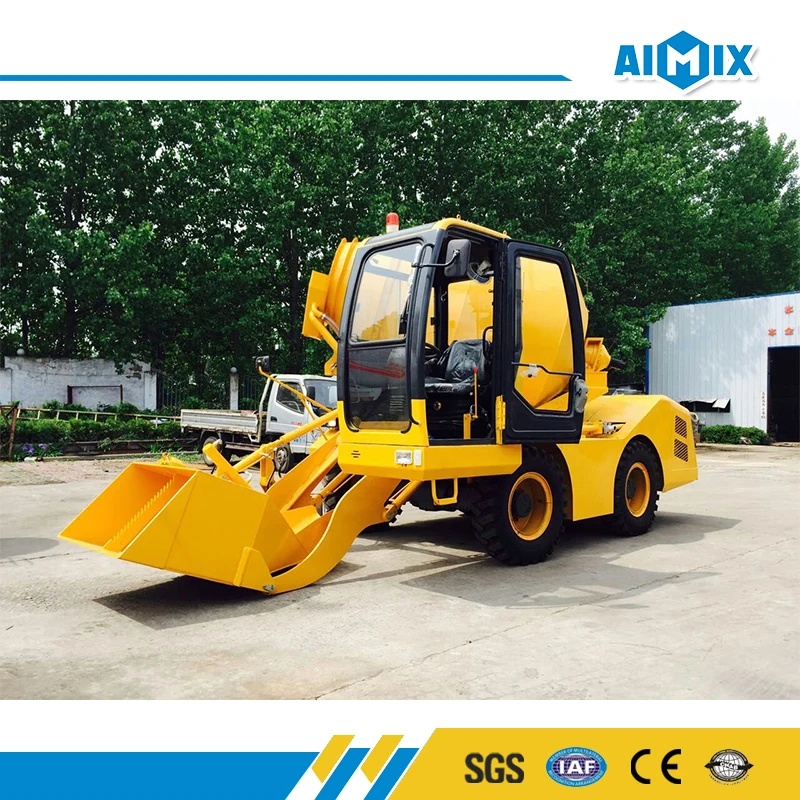

High efficiency 3m3 automatic self loading concrete mixer truck

Product Description

High efficiency 3m3 automatic self loading concrete mixer truck is combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.



Technology parameter



Vehicle

Curb weight

kg

7000

Drive



4 wheels

Steering

mm

Front wheels

Tyre

mm

10.00-20

Transmit speed

km/h

0-20

Working speed

km/h

0-9

Gradient

°

15

Dimension(for shipping, shovel dismantled)

(L*W*H) mm

5300*2450*3360

Engine

Model

/

Dongfeng Cummins 4BTA3.9-C125

water-cooled, 4 cylinders.

Power

kw/r/min

93kW(126.5HP)/2200rpm

Emission

L

3.9

Hydraulic system

Hydraulic pump



Imported Bosch Rexroth pump

Hydraulic motor



China top brand

Speed reducer



China top brand

Water supply

Water tank capacity

L

300

Supply method



Hydraulic driven water pump

Product Display

High efficiency 3m3 automatic self loading concrete mixer trucks Working processing:

1.by charging scoop,small amount of sand and gravel is loaded into the mixing drum,

2.self-loading concrete mixer interior injected into water, when the supply water flow is completed, adding cement, self-loading concrete mixer will run to the designated place to unload concrete, at the same time, the mixing drum will keep rotating to ensure that the concrete dose not condense.

3.mixing drum is equipped with the screw type of blade,, the maximum savings in working time and raw material,

4.After working, the completion of the need for equipment to be cleaned to ensure that the normal work in the future.
