Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: YHZS50
  • Power(W): 85kw
  • Dimension(L*W*H): 17.7m*3.6m*8.2m
  • Weight: 20T
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: High quality YHZS50 rmc concrete batch plant cost for sale
  • Discharging Height: 3800mm
  • Capacity: 50 M3/h
  • Model: YHZS50 Mobile Concrete Mixing Plant
  • Main mixer: JS1000
  • Batching machine: PLD 1600
  • Aggregate size: 80mm
  • Aggregate Bin volume: 8.3m3
  • Application: Construction Industry
  • Color: Customer Required

Packaging & Delivery

Packaging Details standard package
Delivery Time 15 days after receive the advance payment

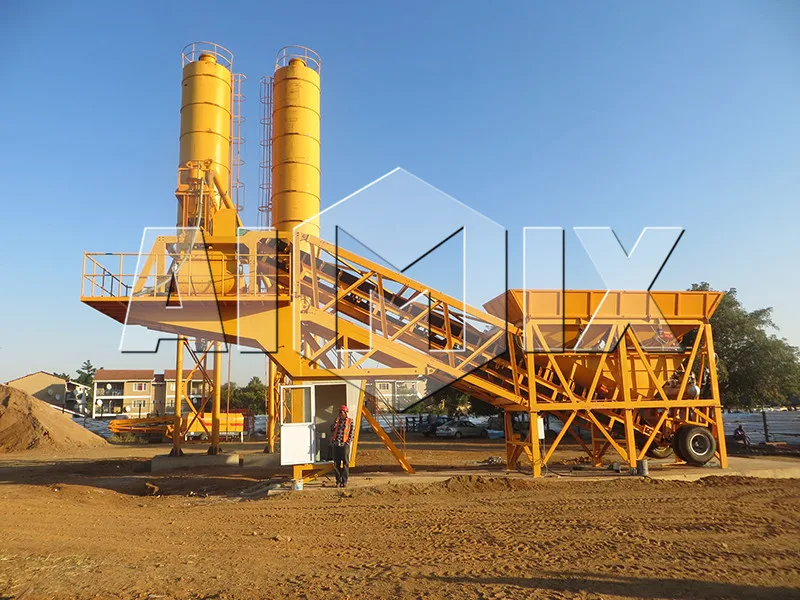

High quality YHZS50 rmc concrete batch plant cost for sale

Product Description



High quality YHZS50 rmc concrete batch plant cost which is suitable for short term or medium term projects to produce plastic concrete, dry hard concrete, etc. Hauling type movable concrete batching plant adopts new design of the semi-pulling . YHZS series hauling type mobile concrete mix plant enable convenient and quick movement and installation without foundation and debugging. It takes only one day from installation to operation so that save time and cost effectively for customers.

1.With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
2.With electronic scales to measure and the mixing host is twin-horizontal-axis type;
3.Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;
4.With the functions of real-time display, information storage and automatically equalizing the fall during the production process;
5.It can be controlled by computer and manually, precast mobile concrete batching plant and then can be easily converted through the switch;



Technology parameter

TypeYHZS25

YHZS35

YHZS50

YHZS75

Theoretical production capacity(m3/h)25355075
Concrete mixerType

JS500

JS750

JS1000

JS1500

Power(KW)24.7538.65165.5
Discharging capacity(L)50070010001500
Aggregate size(Pebble/Macadam)(mm)80/6080/6080/6080/60
Aggregate Bin volume(m3)3.27.38.312
Weighing AccuracyAggregate (KG)±2%±2%±2%±2%
 Cement(KG)±1%±1%±1%±1%
 Water (KG)±1%±1%±1%±1%
 Additive(KG)±1%±1%±1%±1%
Total power(KW)50Kw64Kw85Kw110Kw
Discharging height(M)2.8 m2.8 m2.8 m2.8 m
Gross weight(T)12162050
Main parts



YHZS serise concrete batching plant main component are concrete mixer machine, batching machine, cement soil,control system and so on.

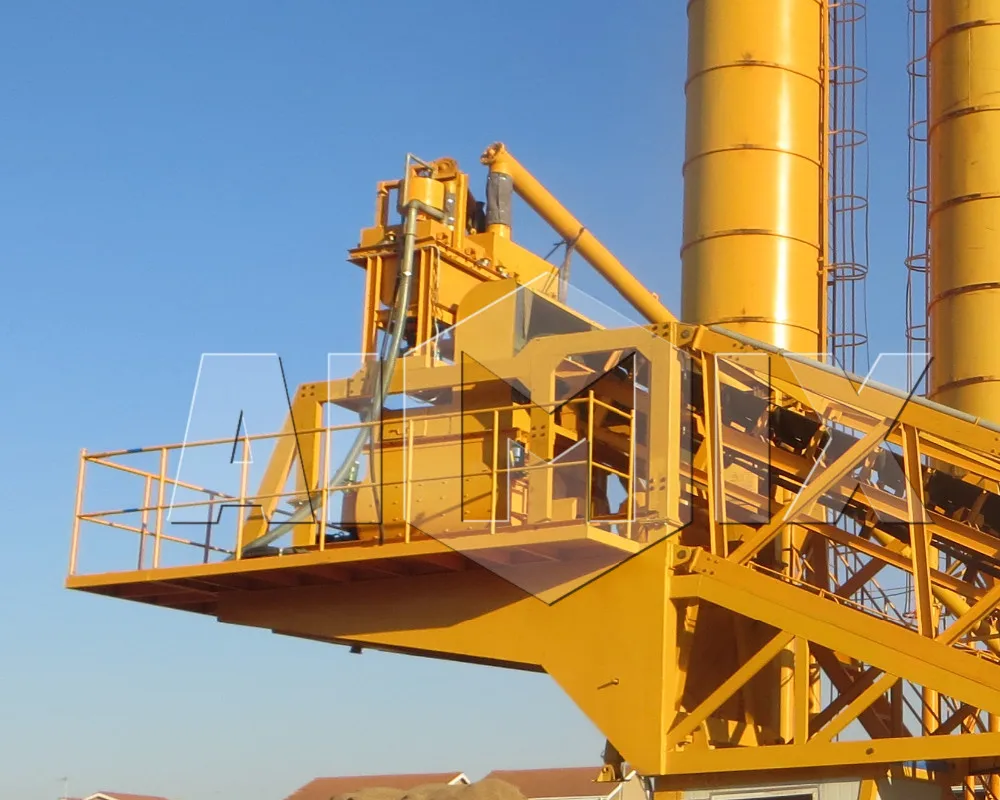

Concrete mixer machine

Adopting the horizontal double-shaft compulsory concrete mixer. It can mix the aggregates strongly,evenly and effectively.

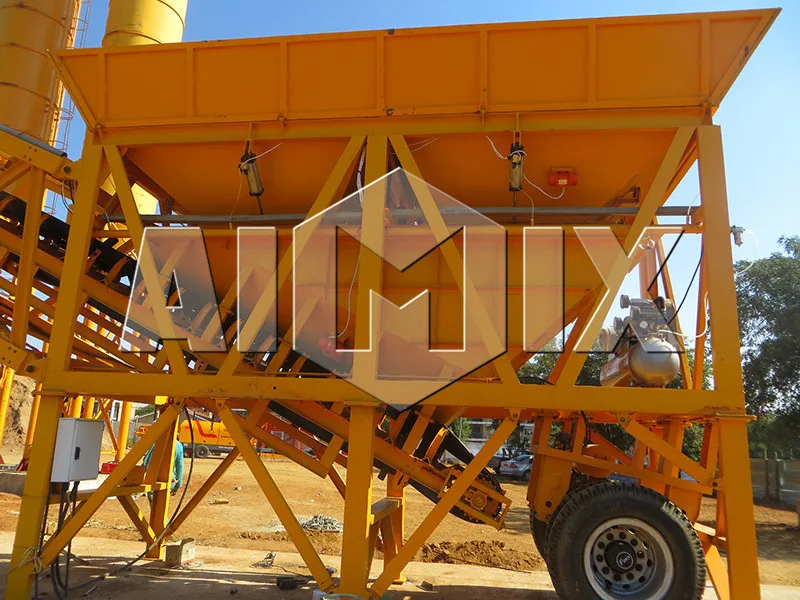

Concrete batching machine:

Accumulating type of weighing is adpoted which ensure the accuracy and reliability of measureing. It can deal with 2 to 3 types of aggregate.

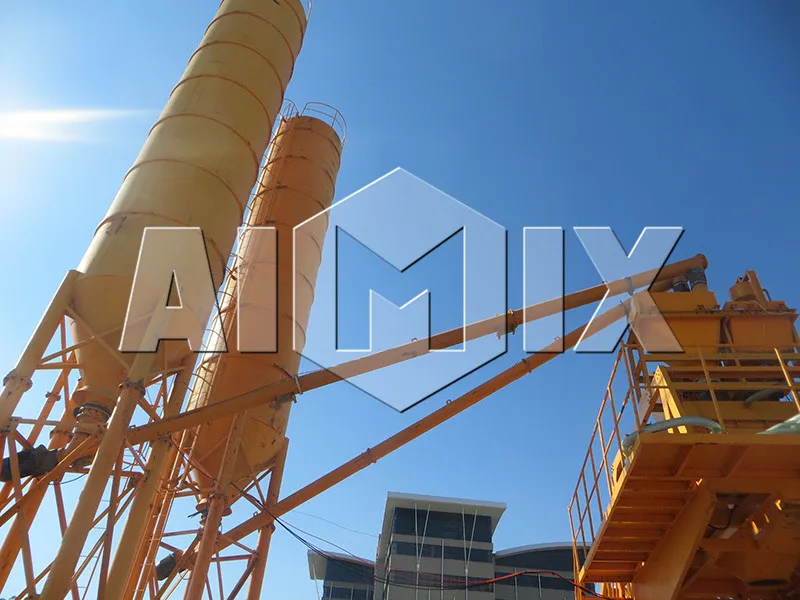

Cement soil:

50-100T (welded and bolted type)

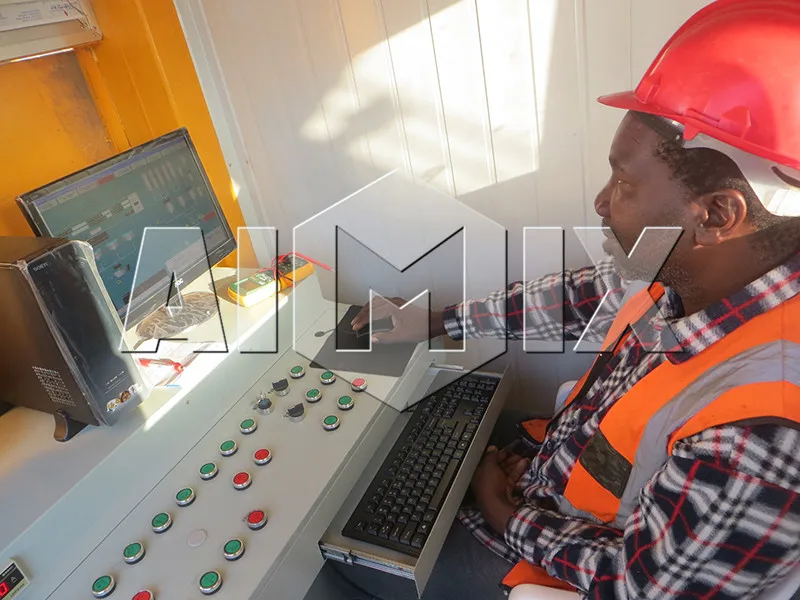

Contorl system:

The whole plant is controlled by industrial control computer. This system has the following features:real-time data processing function; both automatic and manual control available; simple and convenient operation.



Our Services



Application



Successful Cases



Company Information



1.Set up in 1982, our company has more than 30 years experience in the production of construction equipment.

2.Covering space:more than 90,000m², floor area around 50,000 m² , skilled workers can guarantee the product quality and time of delivery.

3.Environmental protection: all closed spray paint room, small welding environmental protection equipment, mixing station are equipped with dedusting equipment.

4..advanced technology: carbon dioxide welding technology, shot blasting machine (in the welding before painting, it can handle the machine cleaner and spray paint better);

5.Patent: (double horizontal shaft mixer) shaft end sealing technology ( prevent leakage of pulp).

6.customized: According to customer demand for mixing station.



Welcome to our factory!

we will provide the best service for you!

High quality YHZS50 rmc concrete batch plant cost for sale!
