Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: HZS25
  • Power(W): 45KW
  • Dimension(L*W*H): 1.54m *5.6m *5.9m
  • Weight: 10T
  • Certification: CE ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Top manufacture 25m3 mini readymix plant batching plant concrete cost
  • Productivity: 25m3/h
  • Main mixer: JS500
  • Batching machine: PLD800
  • Max. Aggregate: 80mm
  • Discharging Height: 3.8m
  • Aggregate Weighing: 1500Kg ±2%
  • Water Weighing: 200Kg ±1%
  • Color: Customer Required
  • Application: Construction Industry

Packaging & Delivery

Packaging Details nude packing
Delivery Time Around 20 working days

Top manufacture 25m3 mini readymix plant batching plant concrete cost

Product Description

Top manufacture 25m3 mini readymix plant batching plant concrete , which maintains convenient installation&removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance. Full-closed main mixing body, aggregate conveying system and dust removal system, it can effectively reduce dust and noise pollution.

Technology parameter



Model

HZS25

Rated Productivity

25m3/h

Main Mixer

JS500

Batching Unit

PLD800

Max. Aggregate Diameter

80mm

Discharging Height

3.8m

Aggregate Conveying Mode

Flat Bet Conveyor

Aggregate Weighing Precision

1500Kg ±2%

Cement Weighing Precision

300Kg ±1%

Water Weighing Precision

200Kg ±1%

Additive Weighing Precision

30Kg ±1%

General Power

45Kw

Total Weight

10T

Outline dimension (L*W*H)

1.54m *5.6m *5.9m

Control Mode

Computer Automation



Main parts

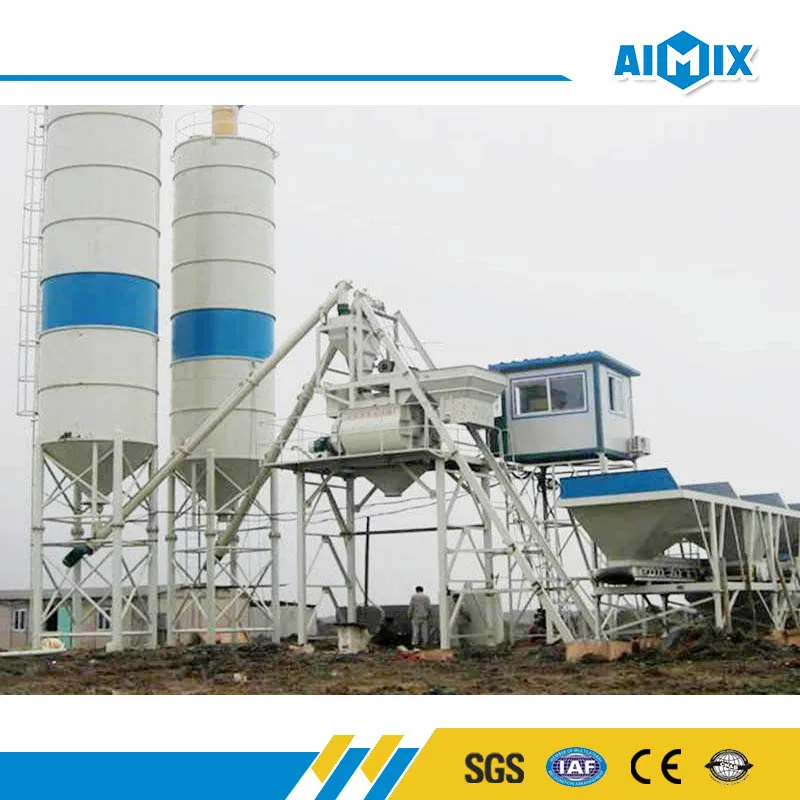

Top manufacture 25m3 mini readymix plant batching plant concrete is consist of batching station, belt conveyor, silo, screw conveyor, conmpulsion type double horizontal mixer, measuring system, water supply system, air supply system, control system, main frame, etc.

Our Services



Company Information

History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Our Markets:

Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.

 Welcome to send email to us!

we will provide the best service for you!

Top manufacture 25m3 mini readymix plant batching plant concrete cost!!!
