Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: YHZS50
  • Power(W): 85kw
  • Dimension(L*W*H): 17.7m*3.6m*8.2m
  • Weight: 20T
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: portable YHZS50 small mobile concrete batch plant for sale
  • Capacity: 50 M3/h
  • Model: YHZS50 Mobile Concrete Mixing Plant
  • Discharging Height: 3800mm
  • Main mixer: JS1000
  • Batching machine: PLD 1600
  • Aggregate size: 80mm
  • Application: Construction Industry
  • Aggregate Bin volume: 8.3m3
  • Color: Customer Required

Packaging & Delivery

Packaging Details standard package
Delivery Time 15 days after receive the advance payment

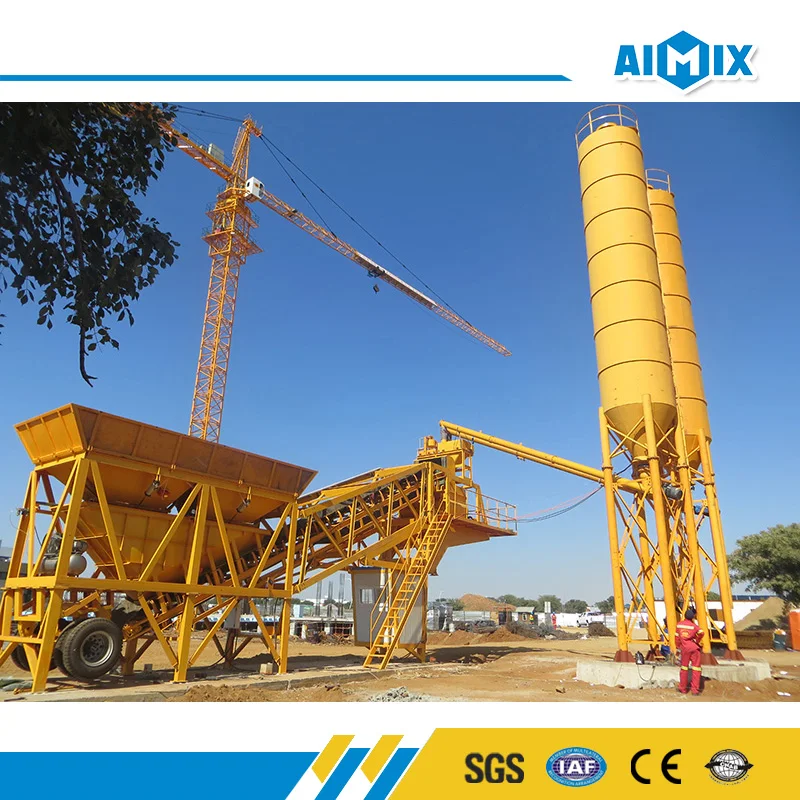

High quality portable YHZS50 small mobile concrete batch plant for sale

Product Description

High quality portable YHZS50 small mobile concrete batch plant is a concrete production equipment that integrates the material storage, weighing, conveying, mixing, discharging and automatic control system of the concrete mixing station ; it is same with stationary automatic mixing plant that operation process, operation mode and system maintenance.

Main features of concretet batch plant:

1. It is composed of the systems of material supply, weighing, mixing and electric control;

2. Its discharge height is 3.8m, and it can mix various types of concrete;

3. With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;

4. With electronic scales to measure and the mixing host is twin-horizontal-axis type;

5. Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;



Technology parameter



Type

YHZS50

Theoretical production capacity(m3/h)

50





Concrete mixer

Type

JS1000

Power(KW)

51

Discharging capacity(L)

1000

Aggregate size(Pebble/Macadam)(mm)

80/60

Aggregate Bin volume(m3)

8.3

Weighing Accuracy

Aggregate (KG)

±2%

Cement(KG)

±1%

Water (KG)

±1%

Additive(KG)

±1%

Total power(KW)

85Kw

Discharging height(M)

2.8 m

Gross weight(T)

20

Main parts





Packaging & Shipping



Application

About concrete batch plant, With unique characteristics are mobile and flexible, easy dismantling, simple for storage management ; High quality portable YHZS50 small mobile concrete batch plant is widely used in the public railway, bridge, port, water and other projects in the construction .



Company Information

Location:

Our company was established in 1982. It is a c  hot sale concrete mixer portable omprehensive group corporation combined with design, production and sale sectors.
History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.
Our main products :

Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine, Dry-mix Mortar Production Line, Asphalt Mixing Plant, Tower Crane, Wheel Loader, Cement Silo, Screw Conveyor, and other construction machinery.
Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.









Our Services



Besides concrete batch plant, we also can supply:



NO.

Product Name

Type

1

Concrete Batching/Mixing Plant



Fixed and Mobile

2

Concrete Mixer



Twin Shaft, Single Shaft, Rotating Drum Type

3

Stabilized Soil Mixing Station/Plant



Station and Mobile

4

Asphalt Mixing Plant



From LB500 to LB4000

5

Dry-mix Mortar Production Line



Full-auto

6

Concrete Batching Machine



Accumulative Weighing Type, Separater Weighing Type

7

Cement Silos



Fixed and mobile


High quality portable YHZS50 small mobile concrete batch plant for sale!
