Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: HBT30
  • Power(W): 37kw
  • Weight: 2800kg
  • Dimension(L*W*H): 4650*1500*1650mm
  • Certification: ISO CE
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Best quality 30m3/h electric small concrete pump price for sale
  • Productivity: 30m3/h
  • Max. ConveyingPumping Pressure: 11MPa
  • Max. Conveying Distance: 160m
  • Max. Horizontal Conveying Distance: 600m
  • Max. Aggregate size: 30mm
  • Slump: 23cm
  • Feeding Height: 1100mm
  • Hopper Capacity: 0.35m3/h
  • Color: Customers' Requirement

Packaging & Delivery

Packaging Details standard packing or as request
Delivery Time within 15 days after advanced payment

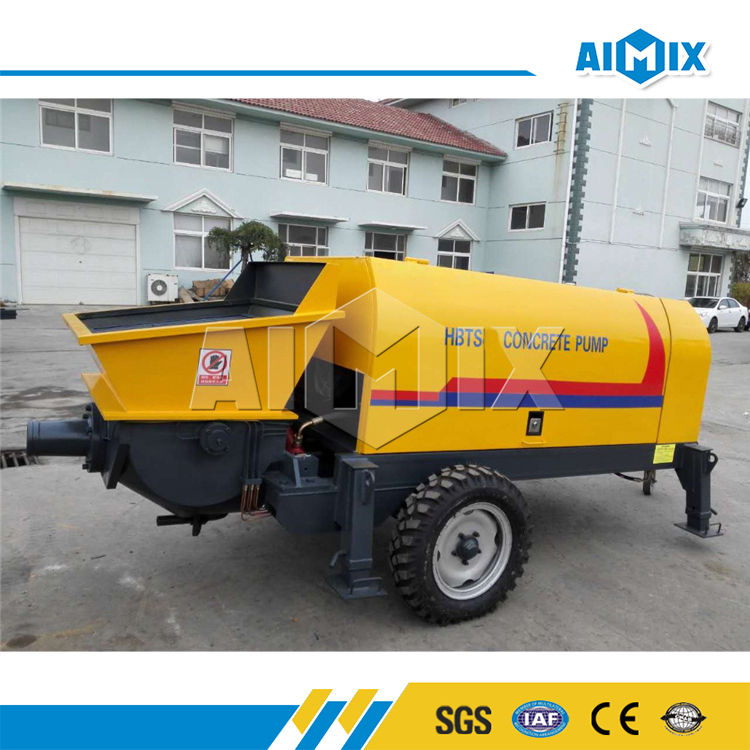

 Best quality 30m3/h electric small concrete pump price for sale

Product Description

 Processing:

Best quality 30m3/h electric small concrete pump driven by the diesel engine to produce hydraulic pressure, the use of hydraulic pressure to drive the cylinder to produce reciprocating motion, driven by the piston to complete the suction and pressure of concrete action.

Application:

Best quality 30m3/h electric small concrete pump is applicable on fine stone concrete conveying, floor heating construction, tunnel and underground construction, mortar conveying, used as spray pump when installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying, applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power,mining and national defense.



Technical Parameters



Items

Unit

XHBT-30S/1011

Max. Theoretical Conveying Capacity

m3/h

20/30

Max. Theoretical Pumping Pressure

MPa

11/6.8

Max. Theoretical Vertical Conveying Distance

m

160

Max. Theoretical Horizontal Conveying Distance

m

600

Max. Aggregate Diameter

mm

30

Slump

cm

12-23

Conveying Pipe Inner Diameter

mm

100A/80A

Conveying Cylinder Quantity

pcs

2

Concrete Cylinder Bore * Stroke

mm

Φ140×1000

Hydraulic Oil Tank Volume

L

240

Feeding Height

mm

1100

Hopper Capacity

m3

0.35

Main Motor Power

kw

37

Overall Dimension (L*W*H)

mm

4650*1500*1650

Overall Weight

kg

2800



Advantages

      1. The power system adopts domestic famous brand electric motor.

2. Using three pumps system, hydraulic circuit does not interfere with each other, the system operation has high stability and high reliability.

3. The anti pump function can eliminate the plugging problems and is expected to keep the material for a short period of time without running the machine.

4. Advanced S pipe distribution valve can automatically compensates the wearing gap, has good sealing performance.

5.Wear-resistant alloy glasses plate and cutting ring ensures long service life.



Main features



Packaging & Shipping

Concrete pump HBT30 was exported to Philippines in2016, these are parts of packing photos.







Our Services

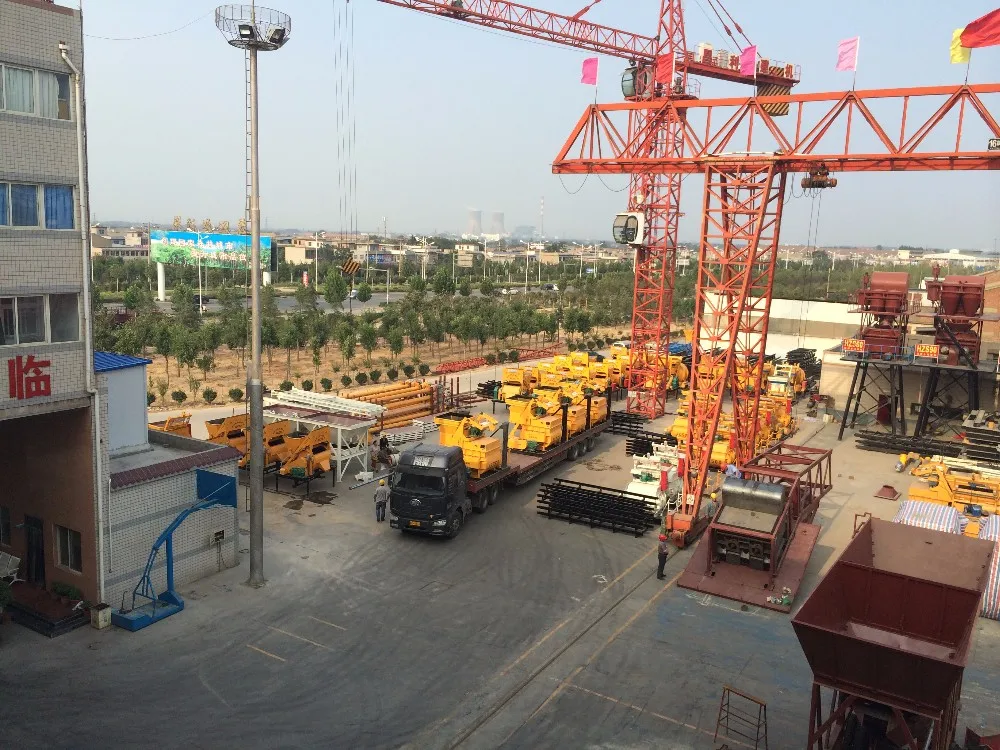

Company Information

History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.

Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.

Our Markets:

Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa, America, etc, more than twenty countries and regions.



we will provide the best service for you !

welcome to visit our factory!

Best quality 30m3/h electric small concrete pump price  for sale!!
