Quick Details

  • Condition: New
  • Power Type: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: AIMIX
  • Model Number: HZS90
  • Power(W): 165Kw
  • Dimension(L*W*H): 35.6m*18.3m*11.8m
  • Weight: 65T
  • Certification: CE ISO
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: HZS90 concrete mixing plant/ concrete batch plant price for sale
  • Capacity: 90m3/h
  • Main Mixer: JS1500
  • Color: Customer Required
  • Type: conveyor type
  • Cement silo: 50t/100t/150t.customized
  • Batching machine: PLD 2400
  • Discharging Height: 4.1m
  • Capacity of Aggregate Bin: 4X12m3
  • Max. Aggregate Diameter: 80mm

Packaging & Delivery

Packaging Details standard packing or as request
Delivery Time 3-15 days after advanced payment

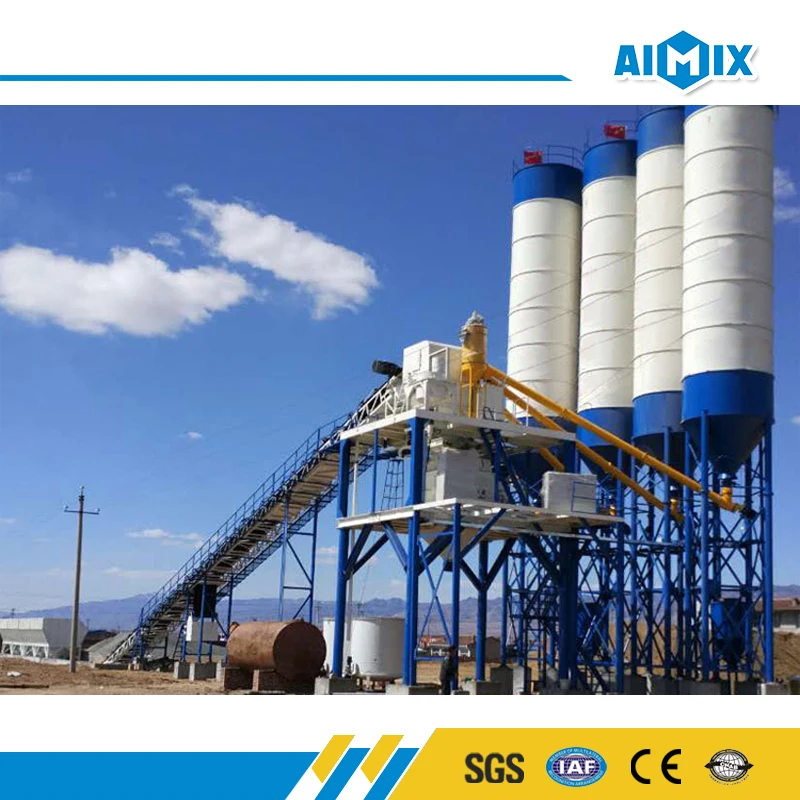

Factory supply HZS90 concrete mixing plant/ concrete batch plant price for sale

Product Description

Factory supply HZS90 concrete mixing plant/ concrete batch plant is an ideal choice for producing commercial concrete. It has two feeding methods. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is often used for higher than 60m3 per hour output production.

Owing to its high degree of mechanization and automation, Improving the production efficiency greatly. concrete batch plant can guarantee the quality of concrete and save the cement and concrete used in large quantity, the concrete batching plant is widely used in long construction period, the site concentration of large and medium-sized water conservancy and electric power engineering, bridge etc.



Main parts

1. Main mixing machine : Twin-shaft concrete mixer JS1500

2.Concrete batching machine : PLD2400

3.Cement soil:50-100T(bolted and welded )

4.Control system: Automatic and Semi-auto

5.Additive weigh system



Technical Parameters

Model

HZS90

Rated Productivity

90m3/h

Main Mixer

JS1500

Max. Aggregate Diameter

80mm

Capacity of Aggregate Bin

4X12m3

Aggregate Conveying Mode

Flat Bet Conveyor

Aggregate Weighing Precision

4X 3000Kg ±2%

Cement Weighing Precision

1500Kg ±1%

Fly Ash Weighing Precision

900Kg ±1%

Water Weighing Precision

600Kg ±1%

Additive Weighing Precision

50Kg ±1%

General Power

165Kw

Total Weight

65T

Outline dimension (L*W*H)

35.6m*18.3m*11.8m

Discharging Height

4.1 m

Application

Concrete batching plant is commonly used in concrete engineering, long construction period, the site concentration of large and medium-sized water conservancy and electric power engineering, bridge etc.. With the development of municipal construction, it is of great advantage to use centralized mixing and mixing station.



Packaging & Shipping

 Our concrete batch plant has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Malaysia, Philippine, Indonesia, Japan, India, Iran etc. Many successful case report for you reference.

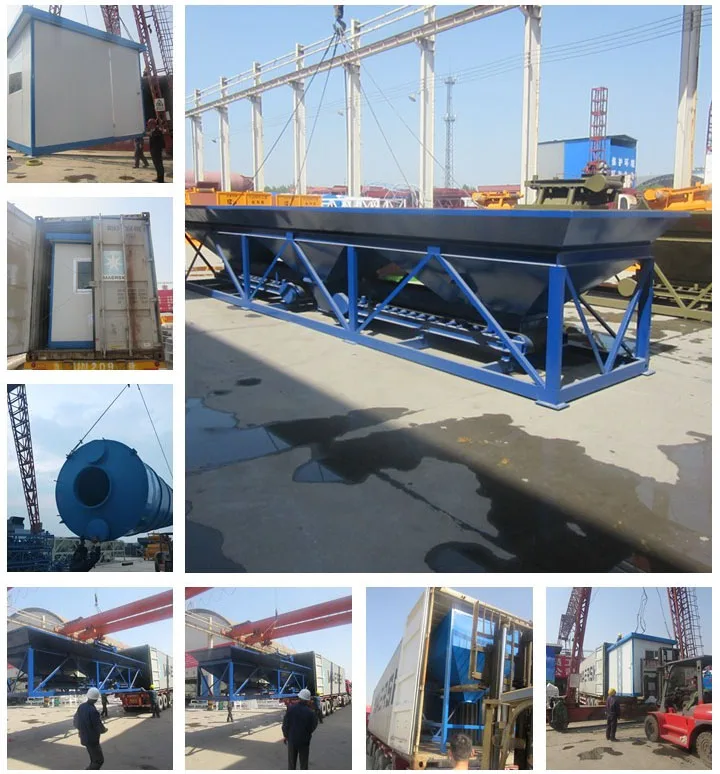

there are some packing photos:                                                                                Got free price

Our Services



Company Information



Location:

Our company was established in 1982. It is a c  hot sale concrete mixer portable omprehensive group corporation combined with design, production and sale sectors.
History:

With more than 30 years development, our company has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers, workers, sales, and service people.
Our main products :

Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine, Dry-mix Mortar Production Line, Asphalt Mixing Plant, Tower Crane, Wheel Loader, Cement Silo, Screw Conveyor, and other construction machinery.
Certificates:

We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.




FAQ

 Q1:Can you sent me some wearing parts?

A:Yes, For some common wearing parts,we will send you freely.

Q2: What is the delivery time?

A: 3-15days after receiving advance payment.

Q3:What paymet terms you use?

Answer:Usually the world most common used T/T,L/C ,etc

HZS90 concrete mixing plant/ concrete batch plant price for sale!

If you have any question, pls contact us!

we will reply you in 24 hours!
